Innovative Solar Simulator Design Utilizing LED Light Sources

  • Variable Output Adjustment from 0.0001 to 1.0 Sun
  • User Settable Spectral Control
  • Self Calibrating with Built-in Intensity Measurements
  • More Than 20,000 Hours LED Lifetime
  • Motorized sample mounting stage
  • 30 mm × 30 mm Output Beam Size

LED Solar Simulator

Simulator Class

A (JIS C8912)

Independent LED Control

Independently drives multiple LEDs at 22 individual wavelengths spaced over the spectrum from 370 nm to 1030 nm

Illumination Area and  Distance

50 mm × 50 mm  and 200 mm

Irradiation Intensity

70 mW/cm2  (integrated irradiance at 360 to 1030 nm)

Illuminance Stability

within ± 1% / h (after 30 minutes of lighting)

Illuminance Distribution

within ± 5% (within effective irradiation area of 25mm x 25mm)
within ± 2% (within effective irradiation area of 10mm x 10mm)

Irradiation Direction

Downward irradiation

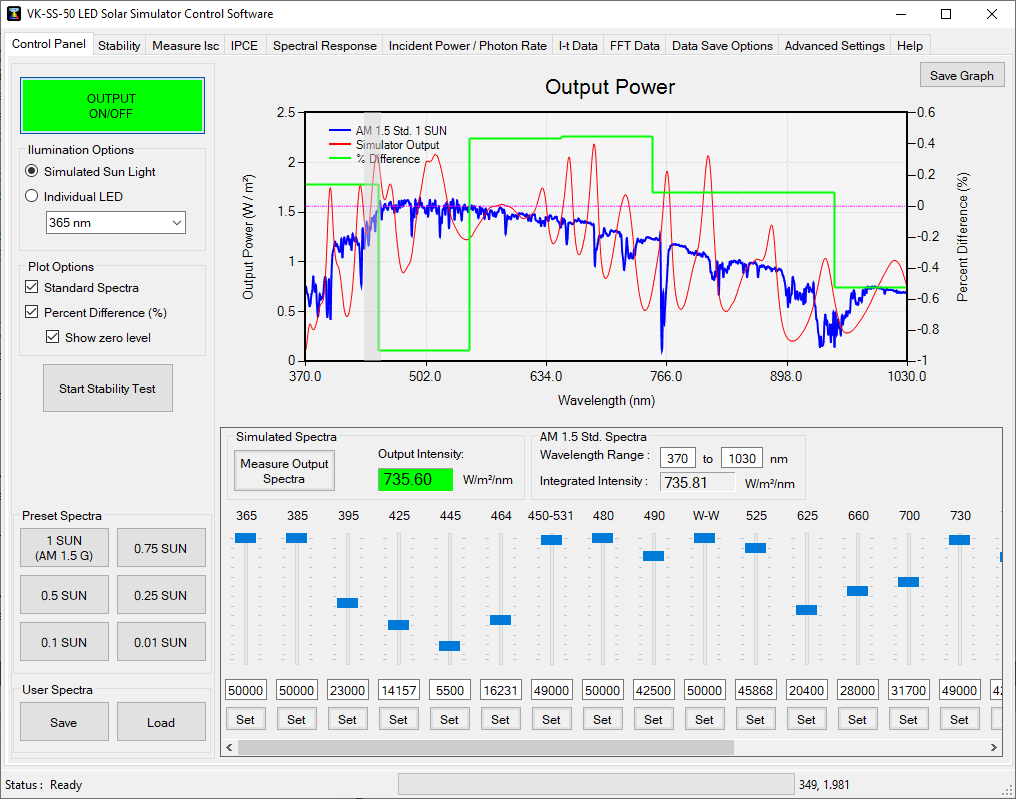

Software

Communication with the PC by Bluetooth
The irradiation light spectrum can be adjusted by  changing all 22 LEDs individually.

Cooling method

Forced air cooling

Input voltage

Single phase 100 V ± 5% 50/60 Hz

Dimensions

Light unit: 400 (W) x 400 (D) x 550 (H) mm
Control box:  320 (W) x 450 (D) x 150 (H) mm

Weight

~ 20 kg
