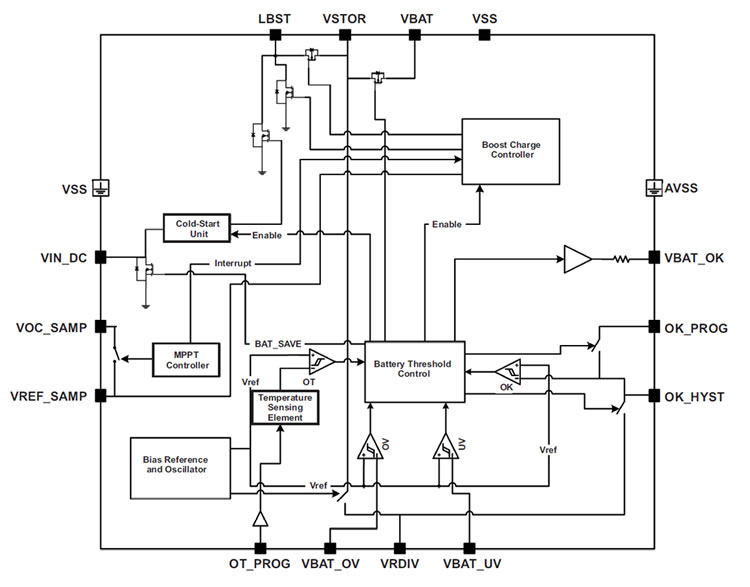

        | Description  | The circuit board is designed to collect and manage  microwatt (μW) to milliwatt (mW) power generated  from various DC sources such as photovoltaic (solar) cells or thermoelectric  generators. This unit implements a high efficiency boost converter/charger for  products and systems with tight power and operational requirements. This DC-DC  boost converter/charger requires only microwatts of power to start working |

        | Characteristic |
          Ultra Low Power, High Efficiency DC-DC Boost Converter/Charger Continuous energy harvesting from low voltage input supply: VIN ≥ 130mV (typical) Ultra-low quiescent current: IQ < 330nA (typical) Cold start voltage: VIN ≥ 330mV (typical) Programmable Dynamic Maximum Power Point Tracking (MPPT).  |

        | Energy source input voltage | 0.13V - 3V  (Cold  start voltage is 600 mV)It will continue energy harvesting from VIN as low as 130  mV
 |

        | Energy storage component and Voltage | Energy can be stored to rechargeable li-ion battery,  thin-film battery, super-capacitor, or conventional capacitor. Voltage range is  2.5 V - 5.25 V. By default unit is set to 3.1 V.  Please request us if you need different  storage voltage.  |

        | Working environment temperature | -40 ~85 ˚ |

        | Boost mode switching frequency | up to 1MHZ |

        | Working mode | Cold start mode, boost mode, thermal protection cut-off  mode |

        |  |  |

        |  |
